Understanding API Architectural Design

What is an API ?

An API (Application Programming Interface) is a set of rules and protocols that allows one piece of software to interact with another. APIs define the methods and data structures that applications use to communicate with each other, enabling integration and the exchange of data between different systems, services, or applications.

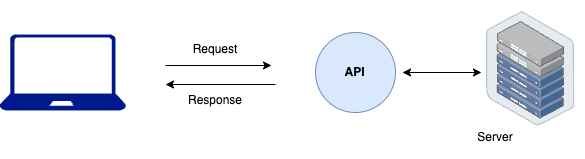

In simpler terms, an API acts as a bridge between different software applications, allowing them to request and send information without needing to know the specifics of each other's code.

---

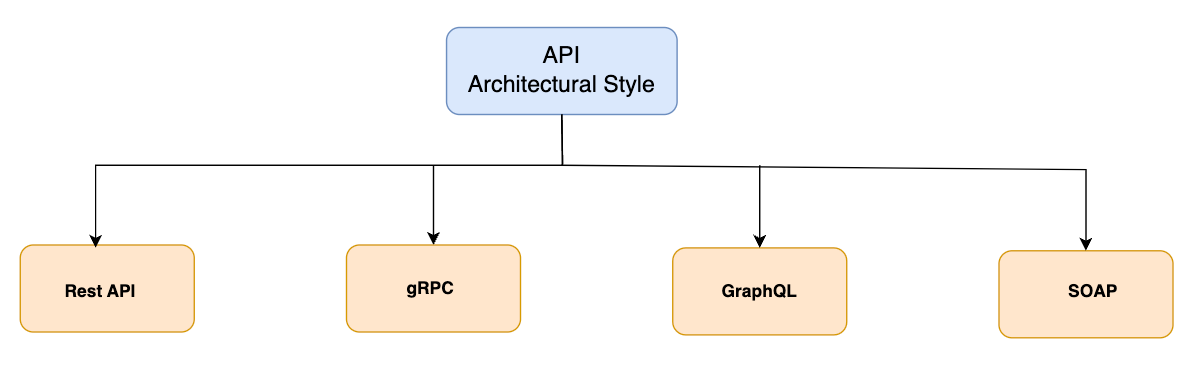

API Architectural Type

API architectural styles establish the structure, rules, and standards that guide API design and implementation.

Interview Insight

When asked with designing an API, avoid immediately jumping into REST API design. Instead, discuss all possible API architectures—REST, GraphQL, gRPC, and others—and define a clear use case. This will ensure the API aligns with the system's specific needs and offers optimal performance and scalability.

---

Simple Object Access Protocol (SOAP)

SOAP (Simple Object Access Protocol) is a messaging protocol that enables applications to communicate with each other over the internet. It’s a protocol specification used primarily for exchanging structured information in web services. SOAP messages are typically sent over HTTP or HTTPS and are formatted in XML, providing a standardized way for different systems, often written in different programming languages, to communicate and exchange data.

Key Features of SOAP:

1. XML-Based: SOAP messages are encoded in XML, making them platform- and language-independent.

2. Standardized Structure: SOAP messages have a strict structure, including:

   • Envelope: Defines the start and end of the message.

   • Header: Optional, used for metadata (e.g., authentication info).

   • Body: Contains the main data or payload of the message.

   • Fault: Used to communicate errors in the message processing.

3. Protocol-Agnostic: Although often used over HTTP, SOAP can work over other protocols like SMTP, TCP, or UDP.

4. Built-In Error Handling: SOAP defines standard error codes for easier troubleshooting and consistency across different services.

Advantages of SOAP:

• Strict Standards: SOAP’s standards make it ideal for enterprise-level applications requiring security, reliability, and transactions.

• WS-Security: It supports WS-Security for data integrity and confidentiality.

• Extensibility: SOAP is extensible, allowing it to support complex applications (e.g., banking, telecom) where security, transactions, and asynchronous processing are crucial.

Disadvantages of SOAP:

• Complexity: SOAP can be more complex and harder to implement than other protocols like REST.

• Performance: The XML format and strict structure can lead to larger message sizes, which may result in slower performance compared to lightweight protocols.

---

REST (Representational State Transfer)

REST (Representational State Transfer) is an architectural style for building web services and APIs that enables communication between different systems over the internet. RESTful APIs are designed to be stateless and use standard HTTP methods (GET, POST, PUT, DELETE, etc.) to interact with resources, making them highly scalable and easy to understand.

Key Features of REST:

1. Statelessness: Each request from a client to a server must contain all the information needed to understand and process it, with no dependency on stored context on the server. This makes RESTful services scalable and easier to maintain.

2. Client-Server Architecture: REST separates the client (frontend) from the server (backend), allowing them to evolve independently. The client is responsible for the user interface, and the server handles data storage and processing.

3. Uniform Interface: REST uses a standardized interface, typically based on HTTP methods, making it easy to interact with different types of clients (e.g., web, mobile). The key aspects of this interface include:

   • Resources: Data is represented as resources, usually accessed by URLs (URIs).

   • HTTP Methods: Common methods are:

     • GET: Retrieve a resource.

     • POST: Create a new resource.

     • PUT: Update an existing resource.

     • DELETE: Delete a resource.

4. Resource-Based Structure: RESTful APIs treat every piece of data as a resource, identified by a unique URI (Uniform Resource Identifier), which allows clients to interact with resources easily and predictably.

5. Representation of Resources: Resources can be represented in various formats, such as JSON, XML, or HTML. JSON is commonly used for REST APIs due to its lightweight nature and ease of use with JavaScript.

6. Cacheability: REST encourages caching of responses to improve performance, making the system faster by reducing server load and response times.

Advantages of REST:

• Simplicity: REST is simple to use, relying on standard HTTP methods and URIs.

• Scalability: Statelessness and caching allow RESTful APIs to scale efficiently.

• Language- and Platform-Agnostic: REST can work with virtually any programming language that supports HTTP.

• Flexibility: REST can support multiple formats (JSON, XML, HTML), making it flexible and widely compatible.

Disadvantages of REST:

• Limited Standards for Security: REST APIs require separate measures (e.g., OAuth, API keys) for security, unlike SOAP which has built-in security standards.

• Stateless Nature: While beneficial for scalability, the stateless nature means that every request requires all necessary information, which can lead to larger payloads and repetitive data transmission.

Interview Question

Difference between SOAP Vs Rest ?

---

gRPC (Google Remote Procedure Calls)

gRPC (gRPC Remote Procedure Calls) is a high-performance, open-source framework developed by Google for building remote procedure call (RPC) APIs. It allows a client application to directly call methods on a server application as if it were a local function, enabling communication between services, often across different programming languages and environments. gRPC uses Protocol Buffers (protobuf) as its interface definition language (IDL) and data serialization format, which is more efficient and compact than JSON or XML.

Key Features of gRPC:

1. Protocol Buffers (protobuf): gRPC uses protobuf to define services and structure data. Protobuf is a binary serialization format, making data transmission faster and more efficient than text-based formats like JSON.

2. HTTP/2-Based Communication: gRPC is built on HTTP/2, which allows for:

   • Multiplexing: Multiple requests/responses can be handled over a single connection, reducing latency.

   • Bidirectional Streaming: gRPC supports streaming in multiple forms: client streaming, server streaming, and bidirectional streaming, which enables real-time communication between client and server.

   • Header Compression: HTTP/2 reduces data size by compressing headers, making communication faster.

3. Cross-Platform and Language Support: gRPC provides client and server support across multiple programming languages, making it easy to build distributed systems.

4. Strongly Typed Contracts: Using protobuf, gRPC enforces strict data types, ensuring that both the client and server follow the defined schema and method signatures, reducing the risk of errors.

Types of gRPC Communication:

1. Unary RPC: A simple request-response model where the client sends one request and receives one response.

2. Server Streaming RPC: The client sends a single request, and the server responds with a stream of messages.

3. Client Streaming RPC: The client sends a stream of requests to the server and receives a single response.

4. Bidirectional Streaming RPC: Both the client and server send a stream of messages to each other, allowing for real-time, continuous communication.

Advantages of gRPC:

• High Performance: The binary protocol (protobuf) and HTTP/2 make gRPC highly efficient and well-suited for low-latency applications.

• Strong Typing and Code Generation: gRPC generates code for both client and server from protobuf files, speeding up development and reducing bugs.

• Streaming Support: Its support for streaming is ideal for applications that require continuous, real-time data, such as IoT and video streaming services.

Disadvantages of gRPC:

• Lack of Browser Support: Because it relies on HTTP/2 and protobuf, gRPC isn’t directly usable in web browsers; a REST gateway is often needed for compatibility.

• Complexity for Simple Use Cases: For simpler applications, the binary format and protocol requirements of gRPC can be overkill.

---

GraphQL

GraphQL is a query language and runtime for APIs, developed by Facebook in 2012 and released as an open-source project in 2015. Unlike traditional REST APIs, where each endpoint returns a fixed structure, GraphQL allows clients to request exactly the data they need, combining multiple data sources into a single query. This flexibility improves efficiency by reducing the number of requests and data transfer, especially in complex applications with many interdependent resources.

Key Features of GraphQL:

1. Flexible Queries: Clients specify precisely what data they want, meaning a single query can retrieve only the required fields, reducing over-fetching and under-fetching.

2. Single Endpoint: GraphQL operates through a single endpoint that handles all queries, mutations, and subscriptions, unlike REST, which often uses multiple endpoints for different resources.

3. Strong Typing: GraphQL uses a schema to define types and relationships between data. This schema serves as a contract between the client and server, making APIs self-documenting and reducing errors.

4. Real-Time Data with Subscriptions: GraphQL supports subscriptions, allowing clients to receive real-time updates when data changes. This feature is ideal for applications requiring live data, like social media feeds or stock tickers.

5. Introspection: GraphQL allows clients to query the schema itself, enabling automated tools to understand the structure and available data of an API, which simplifies development and testing.

Core Components of GraphQL:

1. Queries: Used to retrieve data. Clients specify exactly what fields they need within the data model, allowing for selective data fetching.

2. Mutations: Used to modify data (create, update, delete).

3. Subscriptions: Enable clients to receive real-time updates about changes in data.

Advantages of GraphQL:

• Efficiency: Reduces the number of API calls and prevents over-fetching and under-fetching, leading to optimized performance.

• Flexibility: Clients can structure requests to fetch multiple resources in a single call, enhancing usability for complex, interrelated data.

• Improved Developer Experience: The schema and introspection make GraphQL APIs highly self-documenting, streamlining development and integration.

Disadvantages of GraphQL:

• Complexity for Simple Use Cases: GraphQL can add unnecessary complexity for simple applications or ones that don't require customized data fetching.

• Caching Challenges: Unlike REST, GraphQL doesn’t map as cleanly to traditional HTTP caching, requiring more sophisticated caching solutions.

• Security Considerations: GraphQL APIs require specific security considerations to prevent clients from requesting too much data or sending overly complex queries (query depth limits or rate limiting are often used).

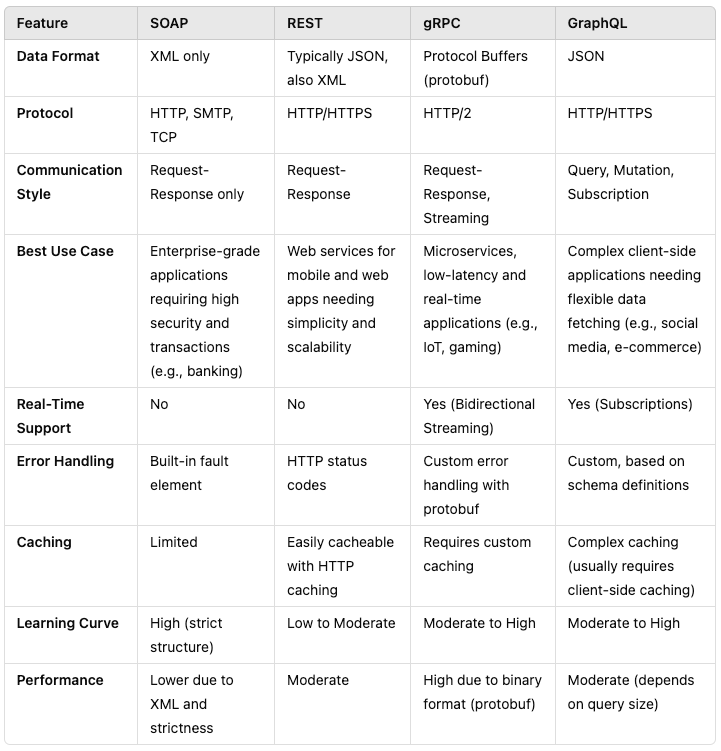

Key Differences

Summary:

• SOAP is best for high-security needs with strict requirements (e.g., enterprise applications).

• REST is suited for simple, scalable web and mobile apps.

• gRPC excels in real-time communication and low-latency environments (e.g., micro-services, IoT).

• GraphQL offers flexibility and is ideal for client-driven data fetching, commonly used in applications needing dynamic and flexible data queries.
